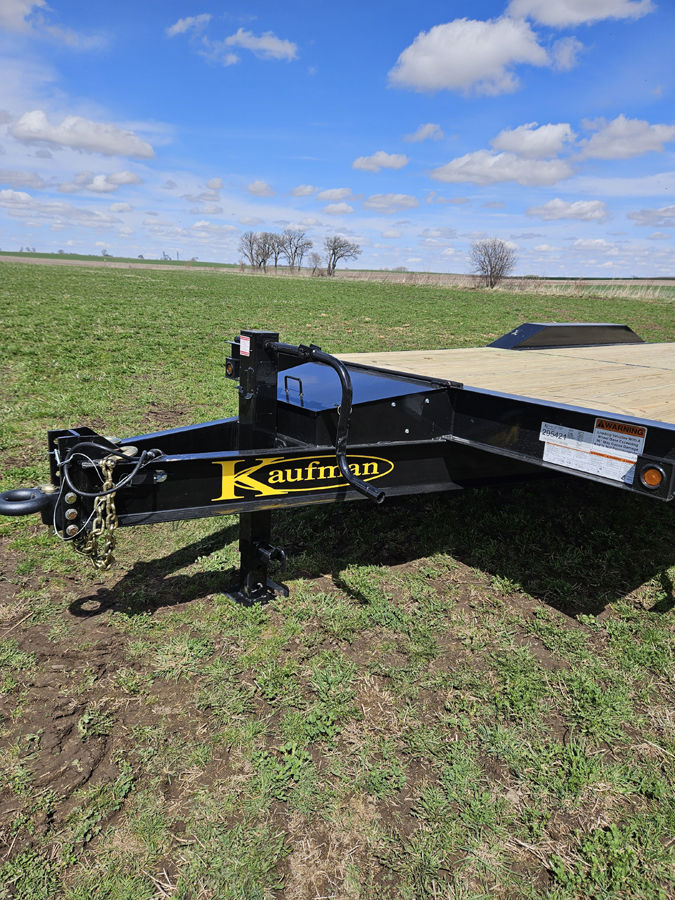

Kaufman BP 22' Tilt Deck 23K

Kaufman
2025
G.V.W.R.: 23,000 GVWR - 18,200 lb. load capacity - empty weight 4,800 lb.
Electrical: Sealed modular wiring harness with LED lights
Frame: 8 in. Channel main frame and tongue with 3 in. channel crossmembers 17 in. on center HD 6 in. channel frame on rear tilting section
Side Rail: 6 in flat with stake pockets and rub rail on fixed section
Tongue: 8 in. Channel main frame and continuous cold formed tongue
Tires: 235/75 R17.5
Floors: 2 in. Treated Wood
Coupler: Super duty cast iron 2 5/16 adjustable coupler
Safety Chains: Heavy duty safety chains
Ramps: 29 in. Wide x 16 in. long beveled extensions
Tie Downs: Stake pockets and Rubrails
Deck Length: 22 ft. (8 ft. + 14 ft. tilt deck with dual hydraulic damping cylinders) 96 in wide x 8 ft long fixed front section
Deck Height: 27 in empty height
Deck Width: 83 in. between fenders - 96 in. wide on 8 ft. long fixed front section
Fenders: 1 piece HD drive over fenders - 3/16 thick
Brakes: All wheel electric brakes - 3 3/8 x 12 1/4
Wheels: Silver solid disk
Jack: 12,000 lb. Drop foot jack
Axles: 2-10,000 lb. oil bath axles
Suspension: Slipper springs
Toolbox: Chain box with lockable lid standard
Finish: Primed, 2 coats of automotive grade enamel, pin striped
Spare tire available for additional cost ($525)
Price does not include WI State Sales Tax
